Choosing Between Thermal Insulation Plaster and Roof Screed Insulation

Every building envelope consultant eventually faces the same specification question: does this project need insulation on the roof, on the walls, or both, and in what form? The answer is rarely obvious from a product brochure. It depends on structural load limits, drainage geometry, whether the building is occupied during works, and how much thickness the design can actually absorb. Getting this decision wrong means either underperforming thermal comfort or overspending on a format the project didn’t need.

This article walks through the underlying physics first, then the practical decision factors that should drive the choice between thermal insulation plaster and roof screed insulation, two formats that solve related but distinct parts of the heat transfer problem in Indian buildings.

Conduction, Not Just Sunlight: Why Insulation and Reflectivity Are Different Problems

Heat enters a building envelope through two largely independent mechanisms, and confusing them leads to poor specification decisions. The first is radiative: solar energy striking a roof or wall surface, a portion of which is absorbed and converted to heat at that surface. This is what a reflective, high-SRI coating addresses. It reduces how much solar radiation gets absorbed in the first place, before it ever becomes heat inside the material.

The second mechanism is conductive. Whatever heat is absorbed at the surface, or already present in the structure from ambient temperature, moves through the building mass by conduction, from the hot outer face toward the cooler inner face (or vice versa in winter). Building insulation works here. It doesn’t reduce how much energy is absorbed at the surface; it reduces the rate at which that energy conducts through the wall or roof assembly. This is why insulation performance is specified by thermal conductivity (W/mK) or its inverse, thermal resistance, rather than by reflectance percentages. Lower conductivity means slower heat transfer through the material for a given thickness.

This distinction matters for specification because the two mechanisms are complementary, not substitutable. A highly reflective roof still conducts some heat inward on a 45°C summer afternoon. An insulated roof with poor surface reflectivity still absorbs more solar energy than it needs to, forcing the insulation layer to work harder. A consultant specifying only one of the two is leaving performance on the table.

Roof Screed Insulation: What It Is and Where It Fits

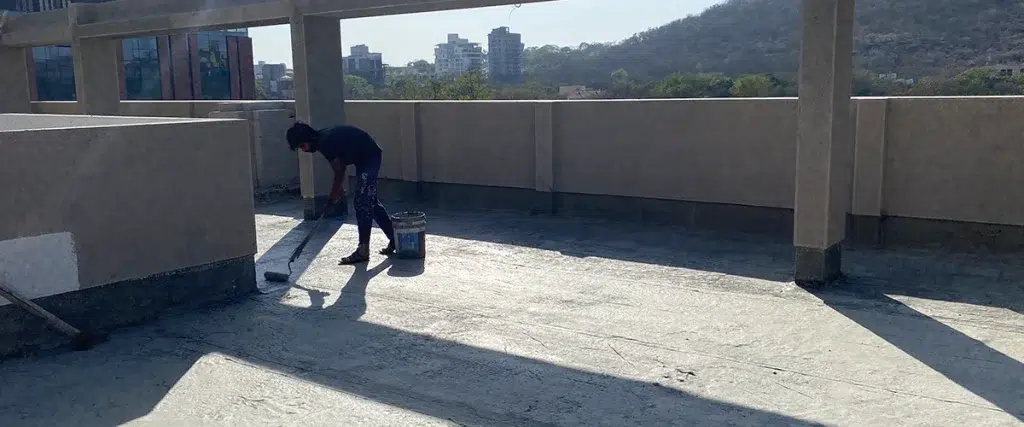

Roof screed insulation is a lightweight insulating screed laid across the roof deck, typically before the waterproofing and topcoat layers go on. Because it is a screed, not a rigid board, it can be laid to a falling gradient during application, which means it corrects drainage slope at the same time it insulates. For flat RCC roofs in India, where poor slope correction is one of the most common causes of ponding, cracking and eventual waterproofing failure, this dual function is often the deciding factor in favor of screed.

Roofs receive the most direct and sustained solar exposure of any envelope surface in a typical Indian building, so when budget allows only one intervention, the roof plane is usually prioritized first. Screed insulation is generally specified in new-build projects or major re-roofing works, where the roof buildup is being reconstructed anyway and the additional thickness of a screed layer can be accommodated within the design.

Thermal Insulation Plaster: What It Is and Where It Fits

Thermal insulation plaster is applied to external or internal wall surfaces in much the same way as a conventional plaster coat, but it is formulated with lightweight, low-conductivity aggregates, such as expanded perlite or comparable materials, in place of standard sand and cement fillers. This gives the plaster coat genuine insulating value without adding the thickness or structural load associated with rigid insulation boards.

This matters enormously in retrofit situations. Adding rigid board insulation to an existing occupied building often means furring out walls, reducing usable floor area, and managing a construction sequence that rigid boards, adhesives and cladding require. Insulation plaster, by contrast, can often be applied over the existing wall surface using trades and equipment a facility already has on site for routine plaster repair, with comparatively less disruption to occupants.

Walls are frequently treated as a lower priority than roofs, but that assumption deserves scrutiny on a case-by-case basis. West-facing and top-floor walls in particular receive intense, prolonged solar gain through the afternoon, and in multi-storey buildings the wall surface area often exceeds the roof area by a wide margin. For hospitals, hotels and educational institutions where west-facing classrooms or wards run hot every afternoon, wall insulation plaster can be a targeted, lower-disruption intervention.

Comparing the Two Formats

Decision Factors for Consultants and Facility Managers

Four questions consistently determine which format, or combination, is appropriate for a given project.

Is the intervention on the roof or the wall? This sounds obvious, but many facility audits stop at the roof because it is the most visible source of heat complaints, without measuring whether west-facing walls are contributing an equal or greater share of the indoor heat load.

Is the project new-build or retrofit? New-build and full re-roofing projects can absorb the thickness and sequencing that screed insulation requires. Retrofits on occupied buildings, particularly on walls, generally favor the lower-disruption profile of insulation plaster.

Does the roof need drainage slope correction? If ponding water is already a documented issue, screed insulation solves two problems in a single layer, insulation and fall correction, which is difficult to replicate with a flat rigid board system.

What is the budget and disruption tolerance? Insulation plaster on walls is typically a faster, less invasive scope than a full roof buildup, which makes it attractive for phased projects where capital is being deployed over multiple years.

Insulation Is One Layer in a Complete Envelope System

Neither format should be specified in isolation. A roof that is insulated but not waterproofed underneath will eventually suffer moisture ingress that degrades the insulation’s performance over time. An insulated roof or wall without a reflective finish above it is still absorbing more solar radiation than necessary, which increases the conductive load the insulation has to manage. The physically consistent approach is to layer waterproofing beneath, insulation within the assembly, and a reflective cool roof coating above, so that each layer addresses the part of the heat and moisture problem it is best suited to.

This is the logic behind how Panache Green structures its envelope portfolio. Rather than offering insulation as a standalone product line, Panache Green’s Insulmix Roof Screed and Insulmix Wall Plaster are engineered to sit within the same system as its waterproofing range and its CoolTops reflective coatings, including CoolTops Premium, which carries a measured SRI of 109 and 87% solar reflectance. When insulation, waterproofing and reflectivity are specified together as one system rather than sourced separately, the interfaces between layers are accounted for at the design stage rather than discovered on site.

Consultants evaluating any insulation product, whether from Panache Green or elsewhere, should request thermal conductivity or resistance data, confirm application thickness against the project’s structural and clearance constraints, and verify compatibility with the waterproofing and coating layers that will sit adjacent to it. That data, not the marketing description, is what determines whether the specification will perform.
