Which thermal insulation is better PU Foam or concrete based Insulated Screed

Neither is universally superior. PU foam thermal insulation delivers the highest thermal resistance per inch of any common roofing material but requires a UV-protective topcoat and verified fire rating. Concrete-based insulated screed offers lower resistance per inch but corrects roof drainage slope simultaneously and avoids the fire-safety documentation exposed foam demands. The right choice depends on thickness constraints, drainage condition and building occupancy.

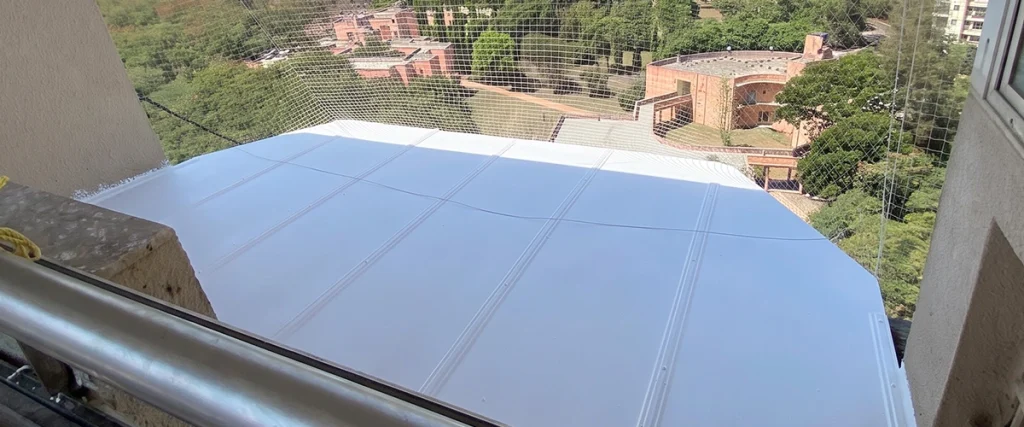

What Is PU Foam Roof Insulation

Spray-applied polyurethane foam, commonly called PU foam thermal insulation, is a two-component liquid system that expands on contact with a roof substrate to form a continuous, closed-cell insulating layer. Because it is sprayed rather than laid in boards or sheets, it eliminates the joints and seams that create thermal bridging in panel-based systems. Its thermal conductivity typically falls between 0.020 and 0.028 W/mK, which places it among the most efficient insulating materials available for building envelopes, meaning a thinner layer can achieve the same resistance to heat flow that a thicker layer of most other materials would require.

This efficiency matters most where roof loading capacity, headroom, or parapet height limits how much thickness a design can accommodate. A structural engineer working within a fixed dead-load budget will find PU foam’s resistance-per-millimetre difficult to match with any mineral or cementitious alternative.

What Is Concrete-Based Insulated Screed

Insulated screed is a lightweight, cementitious layer applied over an RCC roof deck, engineered to combine two functions that are normally handled separately: thermal insulation and drainage correction. Panache Green’s InsulMix Roof Screed is formulated with lightweight aggregates to reduce heat transfer through the roof slab while being trowelled or screeded to a falling gradient toward rainwater outlets in the same application. Its thermal conductivity is higher than PU foam’s, so it needs greater thickness to achieve an equivalent R-value, but that added thickness is precisely what allows the falling slope to be built into the layer itself, something a thin spray-applied foam skin cannot do without a separate screed pass beneath it.

Does PU Foam Catch Fire on a Roof

This is the question most facility managers and fire officers ask first, and it deserves a direct answer rather than a marketing dodge. Untreated polyurethane foam is combustible and, if ignited, can sustain flame spread and release dense smoke. This is a genuine engineering consideration, not a rare edge case. PU foam fire safety roof insulation is achievable, but only when the foam is specified with a fire-retardant formulation appropriate to the building’s occupancy class and is fully covered with a certified, non-combustible or fire-rated protective topcoat, never left exposed. For industrial sheds, warehouses with combustible storage, or any occupied structure, the flame-spread rating and topcoat specification should be documented and verified against the applicable fire code before installation, not assumed after the fact.

Thermal Performance and UV Exposure

On a direct comparison of insulating efficiency, PU foam wins per inch of thickness. But thermal performance on an exposed roof cannot be evaluated independent of weatherability. Spray PU foam degrades under sustained ultraviolet exposure and thermal cycling if left uncovered, losing surface integrity and, over time, insulating performance. Every exposed PU foam roof therefore requires a UV-resistant, elastomeric or granulated wearing course over it, which adds a cost and maintenance layer that is not optional. Concrete-based insulated screed has no such exposure vulnerability. It is inherently weather-stable and typically receives a waterproofing membrane directly above it as part of the same roof buildup, without needing a separate UV-protection step purely to preserve the insulation itself.

Drainage Correction: The Factor Most Specifications Overlook

Indian RCC roofs are frequently cast with inadequate or reversed falls, leaving ponding water that accelerates waterproofing failure regardless of which insulation sits beneath it. This is where the two systems diverge most sharply in practical value. Insulated screed is applied to a calculated gradient, correcting drainage and insulating in a single pass. PU foam roof insulation for RCC applications, by contrast, is typically sprayed to a uniform thickness following the existing deck profile; it does not correct slope on its own. If drainage is poor, a separate screed layer or slope correction is still required beneath or alongside the foam, which changes the cost and sequencing comparison considerably.

Application Skill, Speed and Cost

PU foam installation requires calibrated spray equipment and trained applicators who can control component ratios, ambient temperature and pass thickness to avoid voids or over-expansion. Where skilled crews and equipment are available, application is fast, often covering large roof areas in a single day. This specialised labour and equipment translate into a higher cost per unit area than screed-based systems. Insulated screed, by comparison, uses conventional masonry skills and materials that are widely available across Indian contracting markets, which generally makes it the more cost-predictable option at project scale, though its labour timeline is longer because gradient screeding and curing take days rather than hours.

Comparing PU Foam and Insulated Screed Side by Side

When Each System Is the More Defensible Specification

PU foam is the stronger choice when a roof genuinely cannot accommodate additional thickness or dead load, such as retrofits over existing waterproofing where raising the finished roof level would affect parapet heights, door thresholds or drainage outlets already fixed. It is also useful over irregular substrates, pipe penetrations and complex geometries where a spray-applied membrane conforms more easily than a trowelled screed. Insulated screed is the more defensible specification for the majority of new and re-roofing RCC projects in India, where drainage correction is needed anyway, fire documentation for an exposed combustible layer is undesirable, and site crews familiar with cementitious application are readily available. Panache Green specifies InsulMix Roof Screed for exactly this majority case, engineering the gradient and the insulation as one coordinated layer rather than two separate site operations.

How This Choice Affects the Waterproofing Layer Above It

Whichever insulation is selected, it does not function in isolation from the waterproofing system above it. A poorly corrected slope beneath any insulation, foam or screed, will still pond water and stress the membrane over time. Panache Green’s approach treats InsulMix Roof Screed as the base layer for its integrated waterproofing systems, including FAP Waterproofing and Hi Seal, so that gradient, insulation and membrane bonding are engineered together rather than specified by three separate contractors working to three separate drawings.

The Verdict

PU foam thermal insulation delivers the highest resistance per inch of any common roofing material and is justified where thickness or weight is genuinely constrained, provided its fire rating is verified and it is fully topcoated; concrete-based insulated screed remains the more commonly specified solution for exposed Indian RCC roofs because it corrects drainage and avoids exposed-foam fire documentation within the same application.

Every roof carries its own combination of slab condition, drainage history, occupancy class and structural loading limits, so the PU foam versus insulated screed decision should be made against the specific deck, not a generic rule. Panache Green’s technical team can review your roof’s drawings and site condition and recommend whether InsulMix Roof Screed, a fire-rated PU foam system, or a combination of the two is the correct specification for your building.
